美國人PROLineTM通用型家用電熱水器E61-20U-015SV 美國鷹牌熱水器80升家用電熱水器
希望少量熱水或在附屬建筑物里享受熱水的、家庭用戶或小企業的理想選擇。
Ideal for homeowners
or small businesses needing small quantities of hot water or for remote baths in
outbuildings.
螺紋旋進,直接內浸加熱元件,1.5KW/120伏(如果需要其他功率和電壓的熱水器,請與我們聯系),效率最高
Screw-in, Direct Immersion Heating Element, 1.5 KW/120 Volts
(other wattages and voltages available) for maximum efficiency
1英寸厚有效防止熱量損失,降低能源成本的的不含氯氟烴的聚氨酯泡沫
1" Non-CFC
Polyurethane Foam to prevent heat loss & reduce energy costs
抗腐蝕保護的Fused Ceramic Shield TankTM(熔融陶瓷盾板)內膽
Fused Ceramic Shield TankTM for anti-corrosion
protection
降溫減壓安全閥側面安裝孔
Side Temperature & Pressure Relief
Valve Opening
非金屬,防腐蝕排污閥
Non-Metallic, Corrosion-Free Drain
Valve
Fused Ceramic
ShieldTM(熔融陶瓷盾板)內膽
堅固、厚實、耐用的藍鈷陶瓷經過871oC高溫熔融在內膽內部表面上,形成防腐蝕內層,可靠保護和使用可達數年之久。
Fused Ceramic ShieldTM
A tough, thick durable coat
of blue cobalt ceramic is fused to the tank’s interior surfaces at
1600oF, forming a corrosion-resistant lining for years of dependable
protection and use.
加熱元件
螺紋擰進,直接浸入,1500瓦/240伏加熱元件,效率最高。如果需要其他種類的電源配置,請與我們聯系。
Heating Elements
Screw-in, direct immersion, 1500-watt,
120-volt heating elements for maximum efficiency. Available in multiple wattages
and voltages for every job.
不含氯氟烴的聚氨酯泡沫絕緣保溫層
這種內膽環繞著厚實的不含氯氟烴的聚氨酯泡沫絕緣保溫層,將熱量保留在內膽內,節約能源。
Non-CFC Foam Insulation
The tank is surrounded by a thick coat
of non-CFC polyurethane foam to trap heat inside the tank, saving energy.
汲取管(6U和12U型號)
能夠把進入的冷水帶入到內膽深處,降低熱水稀釋降溫效應。
Dip Tube (6U and 12U Models)
Carries cold inlet water deep into
the tank to minimize temperature dilution of hot water.
降溫減壓安全閥
位于熱水器側面,使得采用管道連接到排污口或建筑物外部更加簡便易行。
T&P Valve
Conveniently located on the side of the tank to
facilitate piping to a drain or external to the building.
3/4英寸通徑的水接頭
23公升(6加侖)和45公升(12加侖)型號的水接頭位于熱水器頂部或側面;72公升(19加侖)型號只能側面連接。
3/4” Water Connections
Located on top. 6- and 12-gallon models
are top or side connect; 19-gallon model is side connect only.
陽極棒
頂部安裝,加強型陽極,加強對內膽的保護,延長內膽的使用壽命。
Anode Rod
Top-mounted, heavy duty anode for added tank
protection, extending the life of the tank.
內置電氣接線盒
位于頂部,使用方便的接線盒,適用于1/2英寸或3/4英寸導線管。
Built-In Electric Junction Box
Top-located, convenient junction
box, ready for 1/2” or 3/4” conduit.
溫控器/高溫限制控制器
帶有高溫限制功能的單加熱元件溫控器,適用于單加熱元件熱水器。
Thermostat/High Limit Control
Single-element thermostat with
high limit for single-element heaters.
通過的認證標準
美國UL 174認證。所有型號均通過300 PSI試驗壓力和150
PSI工作壓力檢測認證。
Code Approvals
Listed to UL 174. All
models are certified at 300 PSI test pressure and 150 PSI working pressure.
排污閥(只適用于12U和20U型號)
保護兒童,防腐排污閥。
Drain Valve (12U and 20U Models)
Child-resistant,
corrosion-resistant drain valve.
采用堅固耐用的強力量具鋼材料,經過自動控制設備進行成型、軋制滾圓和焊接,確保Fused Ceramic
ShieldTM(熔融陶瓷盾板)熱水器內膽接縫緊密結實。每個內膽都經過三重檢驗,確保沒有質量問題。
Heavy gauge steel is automatically formed, rolled and welded to assure continuous seams for the Fused Ceramic ShieldTM Tank Lining. Each Tank is triple tested to ensure quality.
原廠配件質量保證6年。
Original factory parts warranted for 6 years.
如果需要完整的質量保證資料,請致電021-51002402向美國人熱水器公司中國公司咨詢書面質量保證書。
For complete warranty information consult the written warranty of
American Water Heater Company at 021-51002402。
![]() | ![]() | |

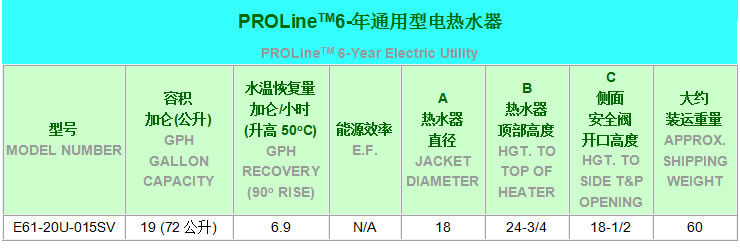

6加侖和12加侖俯視圖 TOP VIEW 6, 12 GALLON | 側視圖 SIDE VIEW | 19加侖俯視圖 TOP VIEW 19 GALLON |
上述計量單位為美制計量單位。其中:1美制加侖 =
3.785公升。 如果需要訂購單個加熱元件,請將型號內的“D”用“S”替換。由于我們不斷的改進我們的產品,因此有關參數如有變化,孰不另行通知。所有長度尺寸單位均為英寸。*備選側面水連接,訂購時在型號后加上"TRV",即E61-06U-015SVTRV. Dimensions and specifications subject to change without notice in accordance with our policy of continuous product improvement. Dimensions on all charts shown in inches. *Optional side water connections, when ordering drop “V” from model number and add “TRV” - E61-06U-015STRV. |
